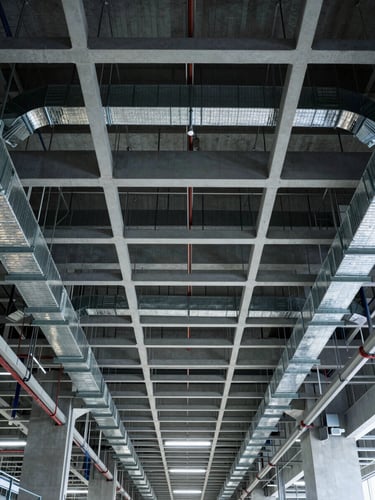

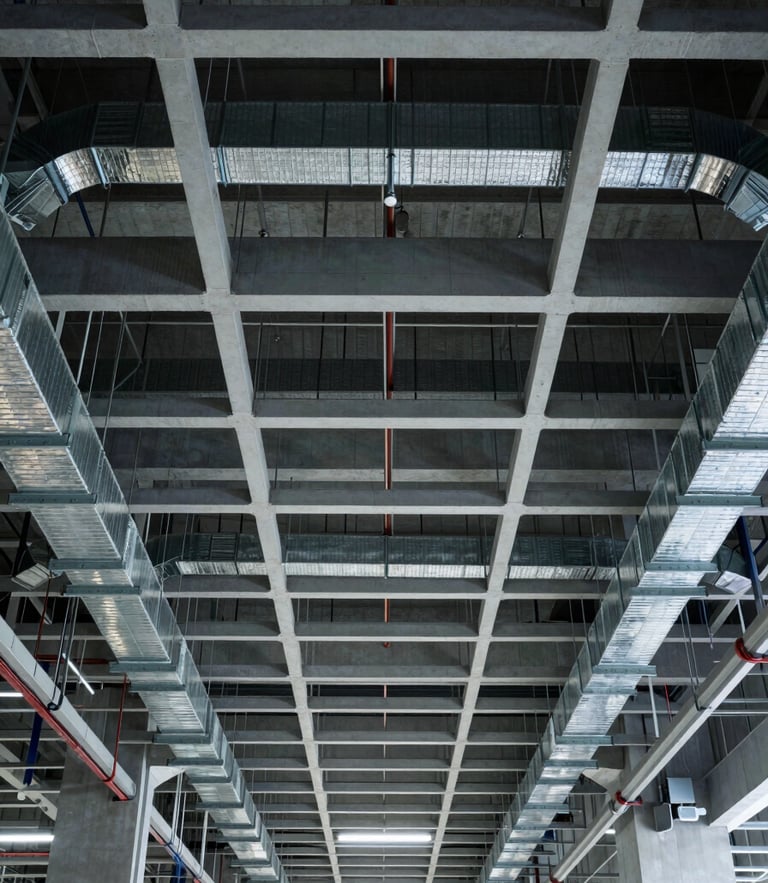

High-contrast orthographic view looking directly up at a perfectly aligned ceiling grid of exposed ductwork, cable trays, and color-coded piping in a modern industrial facility, sharp shadows, cool ambient light.
High-contrast orthographic view looking directly up at a perfectly aligned ceiling grid of exposed ductwork, cable trays, and color-coded piping in a modern industrial facility, sharp shadows, cool ambient light.
Request Technical Specs
/ ZAD SYSTEM SCHEMATICS

Integrated MEP coordination.

We design, coordinate, and optimize mechanical, electrical, plumbing, and fire safety systems as a single digitally-mapped building nervous system. Zero clashes. Absolute uptime.

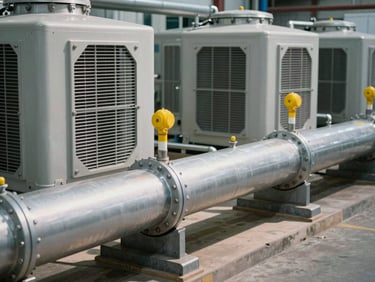

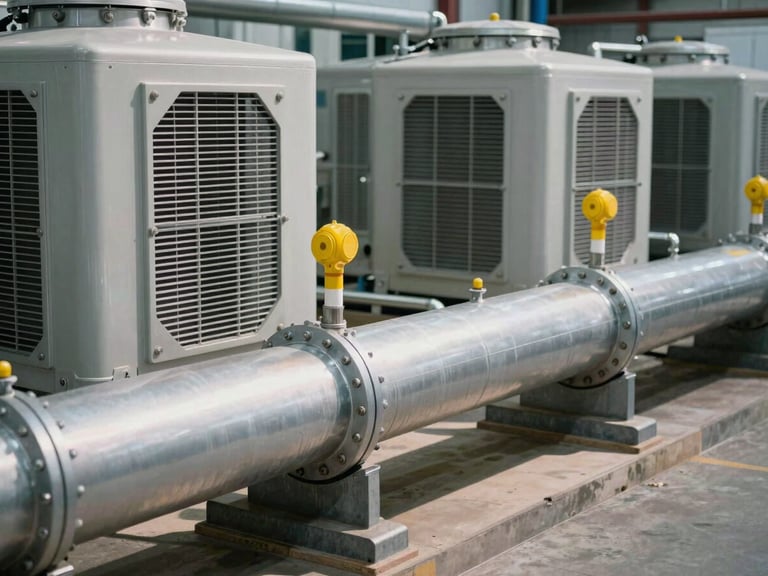

Close-up of massive industrial HVAC chillers and insulated chilled water pipes with yellow flow indicators, high-contrast shadows, clean technical environment.
Close-up of massive industrial HVAC chillers and insulated chilled water pipes with yellow flow indicators, high-contrast shadows, clean technical environment.

Thermal load and ventilation optimization.

Our mechanical engineering team designs high-efficiency HVAC systems tailored for complex thermal profiles. From hospital cleanrooms requiring strict pressure cascades to high-occupancy commercial towers, we prioritize energy recovery and precise airflow distribution.

We run advanced computational fluid dynamics (CFD) simulations to eliminate stagnant zones and optimize chilled water loops before physical installation begins.

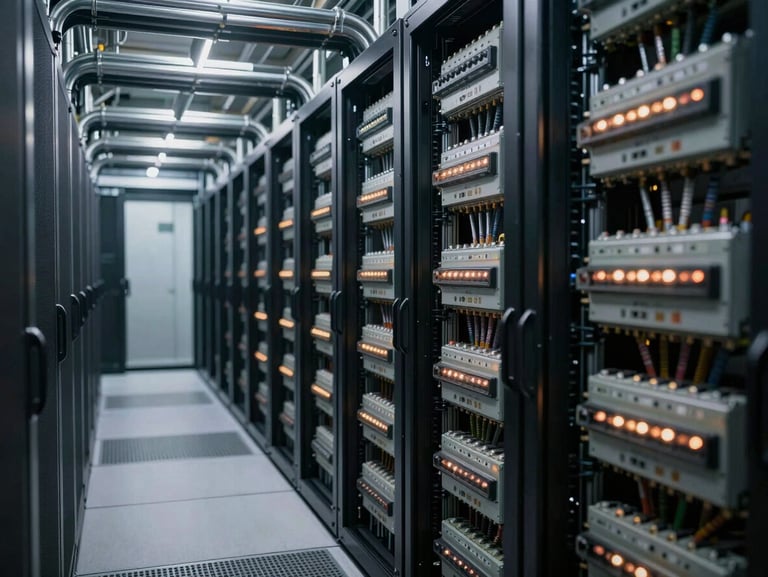

Perfectly aligned electrical conduit runs and heavy-duty switchgear panels in a modern data center, cool ambient daylight mixed with warm status indicator lights.
Perfectly aligned electrical conduit runs and heavy-duty switchgear panels in a modern data center, cool ambient daylight mixed with warm status indicator lights.
+ SYS-ELEC-02

Redundant power and low-current systems.

We design robust electrical distribution networks engineered for continuous operational uptime. Our schematics integrate primary sub-stations, emergency generators, and uninterruptible power supplies (UPS) with built-in system redundancy.

Our low-current services cover structured cabling, integrated building management systems (BMS), and advanced security access networks, all mapped within the central BIM model to prevent routing conflicts.

■ SYS-PLUM-03

Hydraulically calculated fluid networks.

COMPLIANCE CHECK

Water supply, drainage, and specialized irrigation networks calculated to the liter. We perform rigorous hydraulic analysis to size piping systems accurately, ensuring optimal pressure delivery and eliminating water hammer risks.

Zero-clash routing.

Every plumbing riser and lateral run is pre-coordinated against structural beams and HVAC ducts using Navisworks, reducing on-site modifications to absolute zero.

Every run is coordinated in 3D space, mapping gravity-fed drainage lines alongside pressurized supply pipes to maintain critical slopes without encroaching on structural clearances.

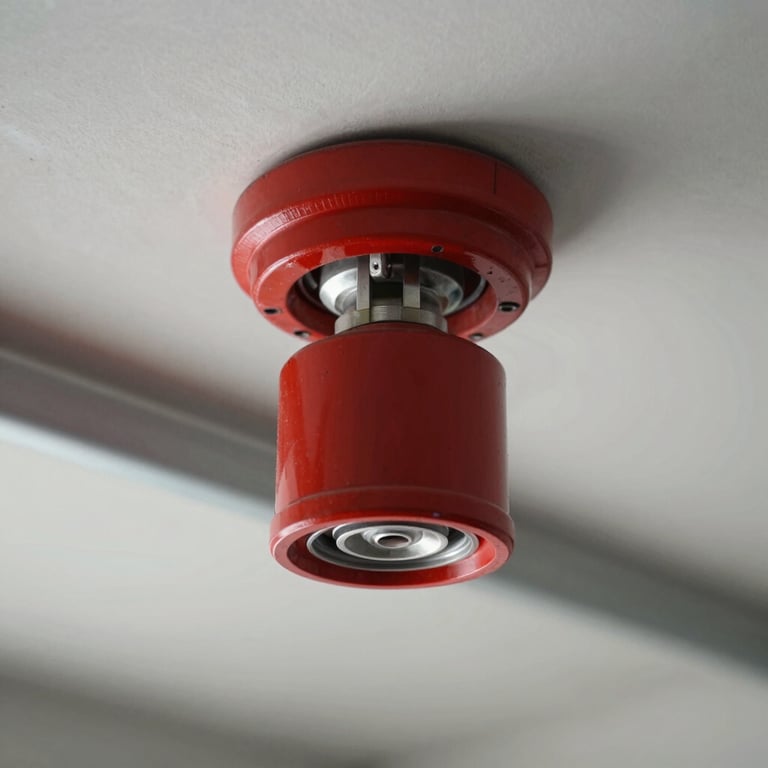

Close-up of a red fire sprinkler head mounted on a clean ceiling grid, surrounded by steel piping, high-contrast studio lighting, sharp focus.
Close-up of a red fire sprinkler head mounted on a clean ceiling grid, surrounded by steel piping, high-contrast studio lighting, sharp focus.
Submit RFP
• SYS-FIRE-04

Life safety and suppression systems.

We design fully integrated fire suppression and alarm networks that meet strict NFPA and local civil defense codes. Our solutions protect lives and high-value physical assets through rapid detection and localized suppression.

From wet-pipe sprinklers in commercial zones to clean-agent gas suppression systems in sensitive server rooms, every system is hydraulically modeled and structurally coordinated.
